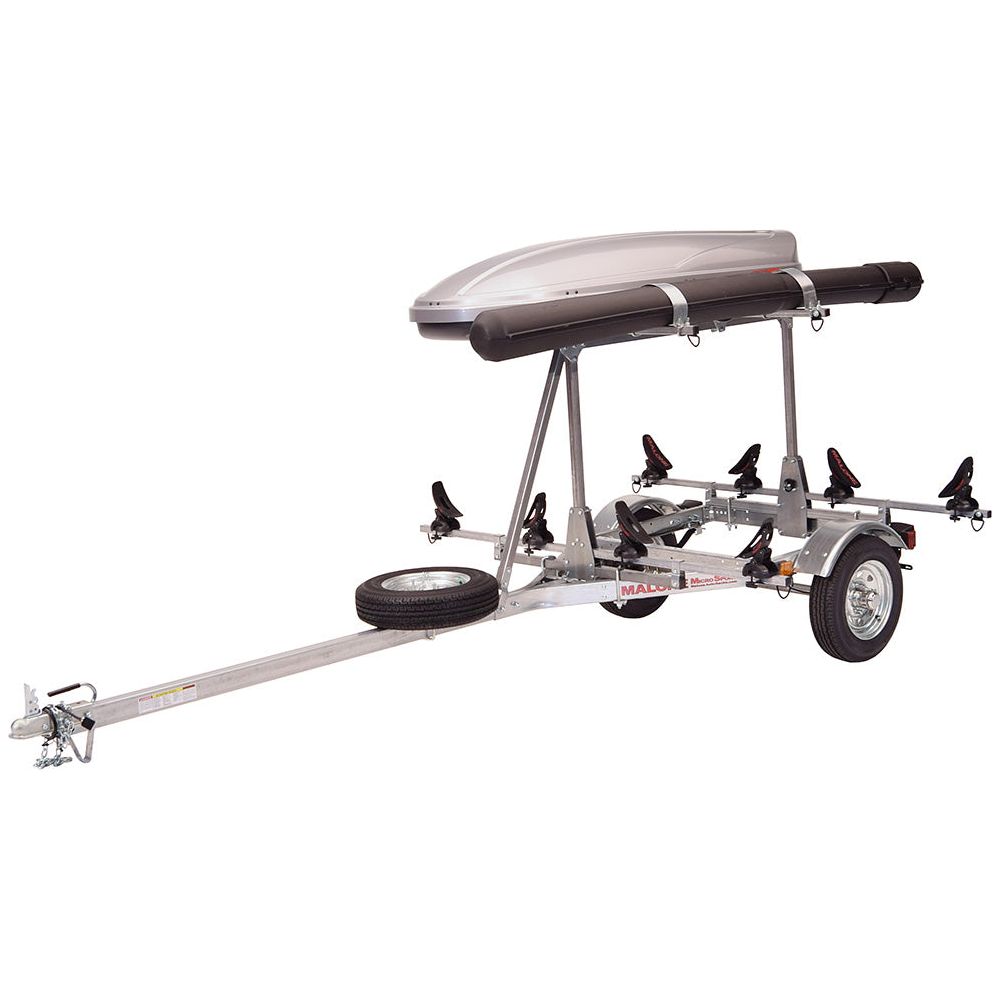

Malone MicroSport Low Bed Trailer package(Tier, Spare, 2 sets Saddle UP, Cargo Box, Rod Tube)

The MPG464-LBTS MicroSport™ LowBed™ package combines our new low profile trailer with a cross section of options to create the perfect multiple kayak transport system. Each unit is fitted with a 2nd Tier Kit, which is designed to hold the Malone Cargo16™ Roof Box and MPG541 Fishing Rod Storage Tube included with the kit.

The 78" load bars are positioned 22” from the ground and easily provide room for the MPG110 SaddleUp™ Kayak Carriers. Loading and unloading large recreational and fishing kayaks is simple, safe and avoids lifting challenges. These galvanized marine grade trailers can be backed down a boat ramp so the boats can be launched directly into the water.

The 2nd Tier has a 100 lb. load rating with 50” long upper load bars that provide a comfortable height (58”) to access the cargo box and Rod Storage Tube. Other features include submersible LED lighting, Spare Tire with Locking Attachment and a Class II, 2" hitch receiver.

This 800 lb. load rated trailer is DOT and Transport Canada approved and assembles in approximately three to four hours with standard tools. Includes a Five Year Limited Warranty and is proudly, Made in the USA.
Features:

• Pre-assembled hubs for a clean and simple installation
• 12" galvanized wheels with marine grade sealed bearings
• Reinforced steel tongue can transport boats up to 20' in length
• 78’’ steel, 1-1/4’’ square load bars featuring d-ring tie-downs
• 50" steel, 1-1/4’’ square upper load bars with 2nd Tier Kit
• 11 gauge pre-galvanized steel construction for years of service
• Five Year Limited Warranty - Made in the USA

Specifications:

• Load Capacity: 800 lb / 20' canoe or kayak
• Dimensions: 13' 3" (length)
• Width (Without crossbars): 55"
• Frame Width Assembled (Width within Fenders): 40"
• Weight (Without accessories): 197 lb
• Frame: Marine grade galvanized steel
• Hitch: 2" Class II receiver
• Required Ball Size for Vehicle Attachment: 2"
• Ball Height: 18" From Ground - To Top Of Ball
• Recommended Tire Pressure: 35 to 40 PSI
• Tongue Weight (Unloaded): 25 lb
• Lower Cross Bar Spread (Adjustable): 44" - 63"
• Height of Upper Cross Bars from Ground: 58"
• Height of Lower Cross Bars from Ground: 22"

What’s In The Box:

• (1) LB 2nd Tier w/ Load Bars
• (1) MPG465 Spare Tire with Locking Attachment
• (1) MPG541 Fishing Rod Storeage Tube
• (2) MPG110 SaddleUp™ Kayak Carriers (set of 2)
• (1) MPG910 Profile18S™ Rooftop Box
• (2) 12" High Speed Wheels
• (1) Reinforced Steel Tongue
• DOT Approved LED Lighting
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• (1) Instruction Manual & Registration Documentation
• Total Shipment: 8 Cartons

Note: Product ships via freight on a pallet.
